PDF Settings

There are a whole range of settings for the PDF format itself in addition to those for the PDF file's content (general elements). n2pdf supports a number of these settings such as the security functions, PDF file descriptions and font embedding.

All the settings are made using the function N2PDFSetOption and must be done before the command N2PDFProcess. Below you will find a list of all possible settings that can be used in the parameter <OptionID> with N2PDFSetOption. The respective setting values are made using the parameter <OptionStr>. The last parameter is unused and therefore always set as "".

112

Whether or not all the options below are supported depends on the reader being used. Some may only work if the reader accepts these settings. The term "reader" used in the descriptions below generally means the "Acrobat Reader", which is the one these settings pertain to. Settings may vary for other types of readers.

N2PDFOPTION_PDF_PAGE_MODE

N2PDFVALUE_PAGEMODE_NONE	The last reader settings are used.
N2PDFVALUE_PAGEMODE_FULLSCREEN	Reader is launched in full screen mode.
N2PDFVALUE_PAGEMODE_THUMBNAILS	Reader is launched with opened thumbnails.
N2PDFVALUE_PAGEMODE_OUTLINE	Reader is launched with opened bookmarks.

N2PDFOPTION_PDF_ZOOM_MODE

N2PDFVALUE_ZOOMMODE_NONE	The last reader settings are used.
N2PDFVALUE_ZOOMMODE_FITHORIZONTAL	The page is visible horizontally in its entirety.
N2PDFVALUE_ZOOMMODE_FITVERTICAL	The page is visible vertically in its entirety.
N2PDFVALUE_ZOOMMODE_FITPAGE	The page is visible in its entirety.

N2PDFOPTION_PDF_FONT_MODE

This parameter is used to determine in what form the font types (TrueType) are integrated in the PDF file.

N2PDFVALUE_FONT_USE_TRUETYPE	Use TrueType fonts, but do not embed the font types' data.
N2PDFVALUE_FONT_USE_14BASE_TYPE1	Use no TrueType fonts. When this mode is activated you can only use the following fonts: Arial, Courier New and Times New Roman.
N2PDFVALUE_FONT_EMBED_TRUETYPE	Embed the data of all TrueType fonts to be used.
N2PDFVALUE_FONT_EMBED_TRUETYPE_SYMBOL	Embed only the symbol TrueType fonts (WingDings etc.)
N2PDFVALUE_FONT_EMBED_TRUETYPE_USED	Embeds the data of the TrueType fonts used and only those characters that are also used in the PDF file
N2PDFVALUE_FONT_EMBED_TRUETYPE_CSET	Embeds the data of the TrueType fonts used, namely all those needed according to the current codepage. Keep in mind that the embedding is based on the code page on which the PDF file is created
N2PDFVALUE_FONT_EMBED_TYPE3	Includes the fonts in the TYPE 3 format.

N2PDFOPTION_PDF_COMPRESSION_MODE

N2PDFVALUE_COMPRESSION_NONE	No compression.
N2PDFVALUE_COMPRESSION_DEFLATE	Use "deflate" method for compression (best compression)
N2PDFVALUE_COMPRESSION_RUNLENGTH	Use the "run length" method for compression (compatible with older PDF file versions)

N2PDFOPTION_PDF_JPEG_LEVEL

With this parameter you can set the ratio of JPEG quality and level of compression.

Data is compressed using only the method selected under N2PDFOPTION_PDF_COMPRESSION_MODE.

N2PDFVALUE_JPEG_LOWEST	Best compression, poorest image quality
N2PDFVALUE_JPEG_LOW	….
N2PDFVALUE_JPEG_MEDIUM	….
N2PDFVALUE_JPEG_HIGH	….
N2PDFVALUE_JPEG_HIGHEST	Poorest compression, best image quality

N2PDFOPTION_PDF_CONVERT_HYPERLINKS

This parameter is used to turn the function of clickable hyperlinks in the PDF on or off.

N2PDFOPTION_PDF_CONVERT_JUMPLINKS

This parameter is used to turn the option which creates user defined jump links on or off, making them clickable in the PDF or not.

N2PDFOPTION_PDF_CONVERT_FILELINKS

This parameter is used to turn the option which creates file links on or off, making them clickable in the PDF or not.

N2PDFOPTION_PDF_CONVERT_EMAILLINKS

This parameter is used to turn the option which creates email links on or off, making them clickable in the PDF or not.

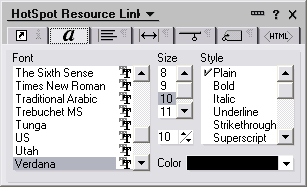

Use this parameter to control whether elements that are defined in Notes as "hotspots" are included in the PDF file as clickable links. In Notes, graphics or texts can be defined as link hotspots (Hotspot Resource Links) and given a Notes formula or URL, or a document, view or database link.

If you set the option N2PDFOPTION_PDF_CONVERT_HOTSPOTLINKS to N2PDFVALUE_TRUE, then these elements are also clickable later in the PDF file.

N2PDFOPTION_PDF_CREATE_THUMBNAILS

You can use this parameter to enforce the creation of thumbnails, meaning that you do not have to rely on the reader to create them itself.

N2PDFOPTION_PDF_ENCRYPTION_MODE

N2PDFVALUE_ENCRYPTION_NONE	Do not use encryption
N2PDFVALUE_ENCRYPTION_40BIT	Use 40 bit encryption
N2PDFVALUE_ENCRYPTION_128BIT	Use 128 bit encryption

112

A random password is generated if you activate an encryption mode and do not set an "owner" password. If this happens you will be unable to edit the file later, since you will not know what the password is. To ensure that the file can be edited later you must also use the function N2PDFOPTION_PDF_PASSWORD_OWNER.

N2PDFOPTION_PDF_PASSWORD_OWNER

This parameter is used to set the password ("owner password") that protects access to the PDF file for editing and enables the file to be encrypted (see N2PDFOPTION_PDF_ENCRYPTION_MODE). Use your own password as the value.

N2PDFOPTION_PDF_PASSWORD_USER

This parameter is used to set the password ("user password") that must be entered for reader access to the PDF file. Use the password as the value.

You can use the following parameters to restrict the operations that can be performed with the PDF file.

N2PDFOPTION_PDF_SECURITY_PRINT	Allow or prohibit printing of the PDF file
N2PDFOPTION_PDF_SECURITY_CHANGE	Allow or prohibit making changes to the PDF file
N2PDFOPTION_PDF_SECURITY_COPY	Allow or prohibit the copying or extraction of content from the PDF file
N2PDFOPTION_PDF_SECURITY_FORM	Allow or prohibit the editing of form fields and comments
N2PDFOPTION_PDF_SECURITY_DOC_ASSEMBLY	Compilation of content
N2PDFOPTION_PDF_SECURITY_FORM_FILL_IN	Filling in and signing of form fields
N2PDFOPTION_PDF_SECURITY_ACCESSIBILITY	Output help for the content

Set the value as N2PDFVALUE_TRUE when you want to allow an operation and N2PDFVALUE_FALSE if the operation is to be prohibited.

112

A few settings are dependent on other security settings, and can only be used together. You can find the interaction of the individual security options in the Acrobat SDK. In Version 8 of the SDK, the description is in the document "pdf_reference.pdf" in Chapter "3.5.2 - Standard Security Handler". "TABLE 3.20 User access permission" should especially be noted.

You can fill the info area of the PDF file using the following options. Use the content that is to be displayed there as the value.

N2PDFOPTION_PDF_INFO_TITLE	Title of PDF file
N2PDFOPTION_PDF_INFO_SUBJECT	Subject of PDF file
N2PDFOPTION_PDF_INFO_AUTHOR	PDF file author
N2PDFOPTION_PDF_INFO_KEYWORDS	PDF file keywords
N2PDFOPTION_PDF_INFO_PRODUCER	PDF file producer

N2PDFOPTION_PDF_CREATE_OUTLINE

You can activate the bookmark creation function using this parameter. When this option is activated, the entries in the PDF file's table of contents are simultaneously converted into (clickable) bookmarks.

N2PDFOPTION_PDF_WATERMARK_IMAGE_RESOURCE

Using this parameter you can specify a Notes image resource that is found as a watermark in the background of the PDF file. You can also specify the position on the page where you want the watermark to appear. You set the position of the watermark using the first value (<OptionStr>) in N2PDFSetOption. The following positions may be chosen:

N2PDFVALUE_WATERMARK_POS_TOP_LEFT	Top left corner
N2PDFVALUE_WATERMARK_POS_TOP_CENTER	Centered on top edge
N2PDFVALUE_WATERMARK_POS_TOP_RIGHT	Top right corner
N2PDFVALUE_WATERMARK_POS_LEFT_CENTER	Centered on left edge
N2PDFVALUE_WATERMARK_POS_RIGHT_CENTER	Centered on right edge
N2PDFVALUE_WATERMARK_POS_BOTTOM_LEFT	Bottom left corner
N2PDFVALUE_WATERMARK_POS_BOTTOM_CENTER	Centered on bottom edge
N2PDFVALUE_WATERMARK_POS_BOTTOM_RIGHT	Bottom right corner
N2PDFVALUE_WATERMARK_POS_CENTER	In the center of the page

With the second value (<SubOptionStr>) in N2PDFSetOption you set all the information about the image that is to be used as a watermark in the PDF. You assign all the information needed to separate the image from the database. To do this you will need the image's server, database and file names.

Example (Position the file "n2pdf.jpg" as a watermark in the middle of the page):

N2PDFOPTION_PDF_LANGUAGE_CODE

This parameter is used to define the language in which the PDF file was created. The value transferred is the language code defined in ISO standard 639-1. This language code is required when creating PDF/A-compliant documents.

N2PDFOPTION_PDF_CID_FONT_MODE

You can use these parameters to enable the creation of CID fonts or to use CMaps for the layout of the PDF file.

CID format is a PostScript format specifically developed by Adobe for extensive character sets, e.g. Chinese, Japanese or Korean. The CID format enables PDF files to be created with embedded character sets.

CID stands for "Character Identifier", which in turn refers to the "Character Identifier Numbers" which are used to index and find individual characters in the font. A CID font consists of a large file with outline descriptions of characters and a small "CMap" file containing the character list, coding and "Character Identifier".

n2pdf uses CID fonts, e.g. for creating PDF files in complex character sets (Japanese, Chinese and Korean) (http://www.adobe.com/products/postscript/pdfs/cid.pdf). If contents based on corresponding Character Sets are created, the CID font mode for the character set of these languages is automatically enabled internally.

The complex character sets always use the 'Standard CMaps' (see PDF SDK 1.7 "Predefined CMaps") of the PDF format, i.e. viewing requires the relevant language packages and the same character sets are always used.

Language	Predefined CMap used
Chinese (simplified)	GBK-EUC-H
Japanese	90ms-RKSJ-H
Korean	KSCmsp-UHC-H

n2pdf is also capable of using CID fonts for non-complex languages (e.g. Russian or Greek). Although CID fonts are not intended primarily for these languages, this mode nonetheless delivers good results. Especially when compared to the embedding of character sets, this mode offers substantial advantages because it often gives rise to smaller PDF files.

112

The use of CID fonts should always be checked for their corresponding character sets, e.g. to establish whether display errors are present. It is not always possible to achieve an optimum result in CID font mode, e.g. if the character sets are not complete.

You can use CID fonts (and therefore also to create CMaps) using the following commands.

These character sets, based on Unicode values for characters, are then used to create CMaps. You should if possible only use character sets which contain appropriate Unicode encoding. With some character sets, this can otherwise give rise to an incomplete CMap.

PDF files created on the basis of CMaps can be displayed on a system which does not have the font and/or that font in the corresponding Character Set.

This parameter can be used to alter the Character Set (Charset). This is necessary to create a PDF file whose content is not based on the current character set on the computer, i.e. should you wish to create a PDF file with Japanese content (128) on a computer with German language setting (ANSI).

Sets the Charset "SHIFTJIS" (128) for Japanese language support in the PDF file:

1	ANSI (DEFAULT)
128	SHIFTJIS
129	HANGEUL
130	JOHAB
134	GB2312
136	CHINESEBIG5
161	GREEK
162	TURKISH
163	VIETNAMESE
177	HEBREW*
178	ARABIC*
186	BALTIC
204	RUSSIAN
222	THAI
238	EASTEUROPE

Use this option to activate the creation of named destinations in the PDF. Named destinations are bookmarks within the PDF file which allow you to jump directly to these destinations, for example, when the file is opened.

Call N2PDFSetOption ( JobID, N2PDFOPTION_PDF_CREATE_DESTINATIONS, N2PDFVALUE_TRUE, "" )

112

The named destinations can be used when a PDF file is opened with Acrobat Reader. Further information about this can be found in the document "http://partners.adobe.com/public/developer/en/acrobat/PDFOpenParameters.pdf" under the parameter "namedest".

Use this option to activate the conversion of the PDF fields in n2pdf. A template such as this always consists of the command word (see the definition below) with a colon at the end followed by the field name and the preset of the field. The field name and the default value are separated by a "|” (pipe). The entire template is framed by squared brackets, which thus form the beginning and end definition of the template.
